Warm up your
WORKSPACE.
Not the earth.
Choose infrared heating systems from ETHERMA and reduce your energy needs and costs. The ideal complement to your existing heating system!
The energy transition is in full swing, also due to political requirements. In Germany, at least 80 % of gross electricity consumption is to come from renewable energies in 2030; in Austria, the target is 100 %. This is accompanied by a reduction in CO2 emissions from fossil fuels. ETHERMA has been playing a pioneering role in sustainability since the 1980s: cleverly combined with environmentally friendly electricity, ETHERMA electric heating systems help to reduce CO2 emissions.
The legal framework in Germany and Austria stipulates that there must be a minimum temperature at workplaces. Whether in halls or offices. These values are between +17 °C and +25 °C for normal or light work severity.
If these are not achieved when technical possibilities are exhausted, other measures must be taken – such as radiant heating, heating mats and the like. Also in this respect, the infrared heating systems from ETHERMA are the optimal solution. Ideally in combination with PV use close to the building.
High energy consumption due to heat losses between hall ceiling and floor.
Targeted heating of the workplaces, thus lowering the total room temperature to e.g. 19 °C possible.
With ETHERMA you can comply with all regulations, at the same time reduce the room air temperature and thus costs, and your employees will feel completely comfortable thanks to pleasant radiant heat.
Conventional hall heaters are usually convection heaters. In order to achieve a comfortable heat near the floor, hot air is blown from the ceiling. Due to the heat losses until the heat reaches the ground, the temperature must be much higher, which means more energy input. In addition, there is the swirling of dust and bacteria. Infrared heat is different: When infrared rays hit solid materials (such as bodies or walls), they are heated immediately. A pleasant feeling of warmth is created immediately – to be compared with a sunny winter day: if clouds cover the sun, you feel cold. As soon as the sun comes out, it is warm, although the ambient temperature has not changed.
The experiment according to Bedford and Liese confirms: With warm walls, people feel the same comfort despite lower room temperature. The subjectively felt temperature is 2 °C to 3 °C higher than the actual temperature. Thus, the room temperature can be lowered without losing comfort. Every degree less room temperature saves about 6 % energy. Consequently, infrared heat can save up to 18 % energy.
Workplaces in halls and offices can be heated much more selectively with infrared than with conventional heating systems. Especially in halls, cold, unpleasant drafts through open doors prevent a pleasant working climate. Infrared heat solves this problem, because the indoor climate is not created by warm air, but by heat radiation. This heat does not change due to air drafts.
Thanks to punctual infrared heat, you can warm up your workplace in the way you find comfortable. And only if the workplace is actually occupied. Other advantages: fast heat-up time, low investment costs, no maintenance, no technical room, no fuel storage, no complex pipe installation.
Save up to 18 % energy through very targeted heating
More comfort and coziness at every workplace
Same comfort even with air drafts through open doors or gates
Ensuring the security of supply
Reduction of the CO₂ footprint
Especially in large halls, heating the entire area is often not possible or simply not economical. ETHERMA has the perfect solution: a spot or zone heating with infrared heating systems. This way, you only heat the areas that are really necessary and your employees enjoy comfortable and cozy warmth throughout.
Depending on the height, furnishings and insulation of the building, ETHERMA offers ceiling heaters for room heights of up to 9 m, but also heaters for the wall. In any case, they are efficient solutions for rooms with large volume.
For single workstations in high halls.
The heat radiation ideally comes from at least two directions (overlapping).
Thus, higher heat intensity with lower mounting height.
For larger areas in a hall.
The distance between the heaters and the outside walls should not be more than half of the mounting height.
Ideal for large halls with working and storage areas, to heat only those zones where employees have their workstations.
Here ETHERMA EEZ infrared heaters with high surface temperature are used to heat the garage.
In total, 20 infrared heaters of 2 kW were installed in the upper area and 4 infrared heaters of 1.6 kW in the lower area, controlled by 2 thermostats.
The thermostats have a touch display and can also be controlled via a handy app, which makes heating even more convenient.
At this regional textile sorting center, dust kicked up by the gas heating system repeatedly caused health complaints among employees.
ETHERMA’s solution was to install 28 EEZ-2000 infrared heaters with a total power of 56 kW. This keeps the room temperature comfortable for all employees without circulating dust in the hall.
In addition, ETHERMA designed both the electrical cabinet and a detailed installation drawing to ensure smooth and fast assembly.
Calculate with ETHERMA! And thus with more energy efficiency and cost savings. Our practical example shows the savings that can result from lowering the room temperature in a production and logistics hall, with additional electric heating of ETHERMA only for the actual work areas. The total room temperature was reduced from 22 °C to approx. 18 °C. Gas consumption thus fell by around 20 %, or by 39,080 kWh in absolute terms.
Total area: 1,552 m² (of which production: 688 m²)
Construction time: 1985 – 1990
Hall height: approx. 4.5 m
Production jobs occupied: 12
Retrofit 2021: 6 EEZ 800 W heaters
Heat demand according to building type C: min. 210 W/m²
| Simplified cost-benefit calculation | Austria | Germany |
| Savings through reduction of gas consumption (-39,080 kWh) | –2,736 € | –4,690 € |
| Additional electricity costs for infrared heating (+5,913.6 kWh) | +1,419 € | +1,774 € |
| Investment costs for infrared heating per year (useful life 10 years) | +360 € | +360 € |
| Net savings per year | –957 € | –2,556 € |
Average energy prices as of April 2023 excl. VAT. AT: gas: 7 ct/kWh, electricity: 24 ct/kWh; DE: gas: 12 ct/kWh, electricity: 30 ct/kWh
![ETHE-W23011-Bilder-web-Breite-2000px[90]](https://industry.etherma.com/wp-content/uploads/sites/4/2023/06/ETHE-W23011-Bilder-web-Breite-2000px90-1024x403.jpg)
In addition to reducing heating costs by lowering the room temperature while integrating electric heating, the installation of a PV system can sustainably reduce electricity costs. A 38 kWp system generates enough electricity to cover the power requirements of the electric heating system in a hall with 12 production workstations, even in the month with the lowest yield.
Increase of self-consumption
Reduces electricity costs
Guarantees higher supply security
Contributes to a better carbon footprint
| 38 kWp plant Austria | 38 kWp plant Germany | |
| Production electricity PV system p.a. in kWh | 38,000 | 38,000 |
| Own consumption of electricity (of which electric heating) p.a. in kWh | 12,540 (5,913.6) | 12,540 (5,913.6) |
| Savings through own consumption p.a. in €* | 3,010 € | 3,762 € |
| Feed-in tariff p.a. in €** | 2,037 € | 1,910 € |
| Investment costs of the PV system p.a. (useful life 20 years)*** | 2,850 € | 2,850 € |
| Cost savings p.a. in € | 2,196 € | 2,822 € |
*ø Energy prices April 2023: AT: electricity: 24 ct/kWh – DE: electricity: 30 ct/kWh
**ø Feed-in tariff April 2023: AT: 8 ct/kWh – DE: 7.5 ct/kWh
***Simplified calculation example, possible loan interest or further financing costs not taken into account.
Industrial heaters
Product advantages
Full and zone heating
Hygienic indoor climate
Good heat distribution
Robust design
Inclination adjustable
Also for covered outdoor area
Industrial heaters
Product advantages
Full and zone heating
Hygienic indoor climate
Surface structure optimizes radiation
Also for covered outdoor area
infrared heater
Product advantages
Zone heating
Hygienic indoor climate
Robust design
Slim design
Also for outdoor use
 |
|
|
|
| Product | ETHERMA EIH | ETHERMA EEZ | ETHERMA EXO® BASIC |
| Mounting height | 3 m - 9 m | 2.5 m - 4 m | 1.8 m - 2.5 m |
| Power | 3,000 W - 6,000 W | 800 W - 3,600 W | 1,800 W |
| Max. element temperature | 750 °C | 340 °C | 800 °C |
| Protection class | IP 44 | IP 44 | IP 65 |
| Wall mounting |
 * |
* |
|
| Ceiling mounting |
|
|
|
| Fixed connection |
|
|
*Separate accessories required
Microclimate is the totality of all environmental influences in a room that affect the heat exchange between people and the environment.
Besides humidity and ventilation, the room temperature is THE decisive criterion. If the workplace is well-tempered, the body does not need to make any effort to maintain its normal temperature of about 37 °C.
Here ETHERMA heating systems make a targeted contribution in the truest sense of the word. And more individually and efficiently than conventional convection heaters, which unnecessarily heat the whole room, stirring up dust particles and bacteria.
Not only for halls, but also for offices and other rooms ETHERMA has the right heating systems for more comfort and coziness. This is because it is difficult to maintain a constant comfortable temperature for all employees, especially in open-plan offices, at the reception desk or in showrooms. With the efficient LAVA® infrared heating panels from ETHERMA, the temperatures at the various workplaces can be individually regulated very easily.
In times of flex office, where not all employees are always present all the time, this is an unbeatable advantage. In addition, the overall room temperature can be reduced, saving energy and costs.
Our practical LAVA® infrared heating panels guarantee a selective and cost-conscious use of energy even when working at home.
Because it is not necessary to keep all the rooms at the same temperature throughout the house. And it is neither reasonable nor economical to heat a home office that is not used on a daily basis to, say, 23 °C throughout. With ETHERMA infrared heating panels, you can feel the pleasant radiant heat within a few minutes – and that’s exactly during the time you actually use the workstation.
Huiskes-Kokkeler Autogroep is a group of car dealerships with a total of about 250 employees.
LAVA® DESK infrared heating panels from ETHERMA, mounted on the underside of the table, are used to heat the workplaces near external doors and open areas in the showrooms.
Thus, the comfort of employees is increased by targeted and individual heating of workstations. At the same time, energy costs are reduced, as it is no longer necessary to heat the entire premises.
As a condition of a multi-year lease, the new tenant required the landlord to replace the old convection heaters and night storage heaters with a forward-looking, efficient heating system.
A solution with more heating comfort and lower operating costs was required. In addition, the new heating system should also be flexible in terms of installation position to leave more space for desks and shelves.
The old heaters were replaced by LAVA® STEEL and LAVA® BASIC-DM infrared heating panels. Each room is treated as a separate zone and controlled by a programmable thermostat. The lessor also benefits from the long service life and does not need to worry about maintenance or service costs. Because there are none.
Achieving thermal comfort more easily.
A numerical study showed that the total energy demand for an 8-person office in an old building can be reduced by 30 % by lowering the setpoint of the room temperature from 22 °C to 18 °C – with simultaneous use of an additional electrical heating for the work areas. In addition, according to a study by the Technical University of Dresden, thermal comfort – despite reduced room temperature – was already achieved with an infrared heating panel with approx. 120 W heating power per workstation. The pleasing result: Operating costs of only about 45 euros per workplace and per year.
Low operating costs: from as little as 45 euros per workstation per year
Particularly targeted and efficient heating of office workplaces
| Savings potential depending on building type and office size | |
| Variant | Savings potential per day** |
| 2-person office, old building, radiator under window, ventilation via window fresh air diffusers | 4.36 kWh |
| 2-person office, new building according to EnEv09, radiator under window, window ventilation at intervals | 1.6 kWh |
| 8-person office, old building, radiator under window, ventilation via window fresh air diffusers | 12.38 kWh |
*Assumption: heating period October-April, 22 heating days per month, 1-shift operation, 8 h heating time per shift, electricity price:
30 ct/kWh (excl. VAT), test conditions: Climate chamber with 18 °C room temperature
**Pure savings potential by lowering the set temperature of the conventional heating system,
without additional electric heating
The convenient table infrared heating panel.
Product advantages
Individual, comfortable microclimate at the desk
Optionally with timer function and 3-step control
No moving parts, therefore absolutely noiseless
Easy installation
Maintenance-free
Made in Austria

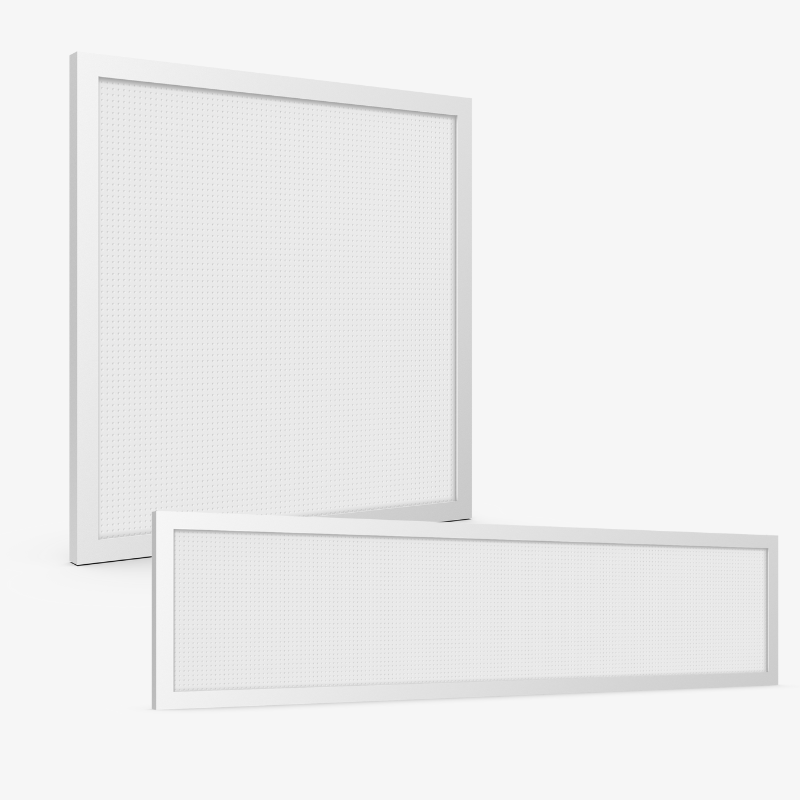

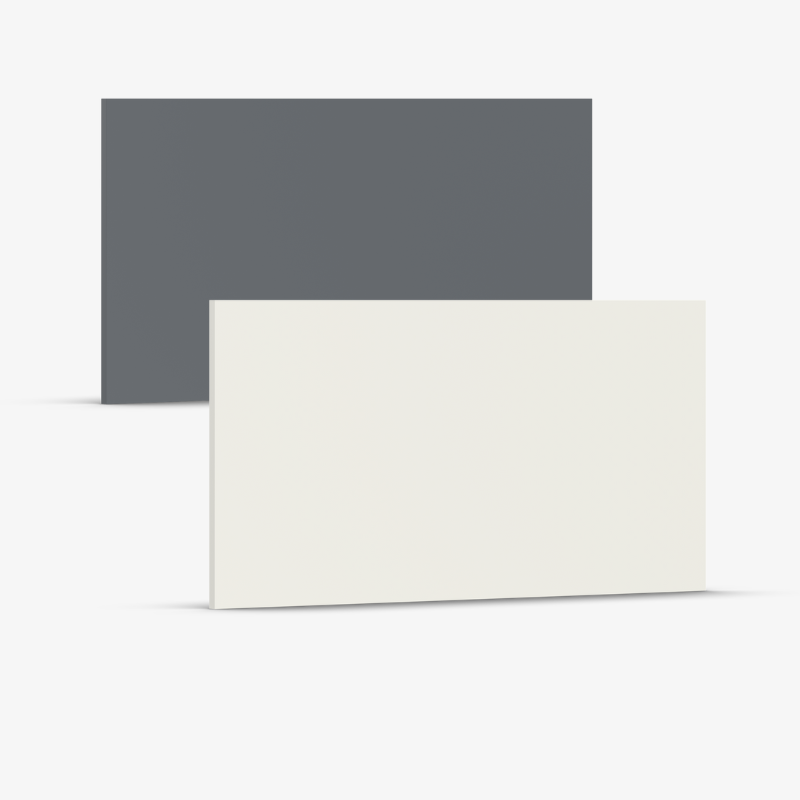

The infrared heating panel for ceiling and wall.
Product advantages
Very low investment costs
Easy and flexible installation on ceilings and walls, without any need for tear-out work
Demand based regulation
Hardly any heat loss and maximum radiation
Modern, frameless design
Ideal for allergy sufferers (no dust swirls)
Maintenance-free
Made in Austria
The mobile stand infrared heating panel.
Product advantages
Flexible placement
Integrated electronic control on the device
Targeted heat emission
Modern, frameless design
Integrated fold-out stand
Handle on the device for easy transport
Maintenance-free
Made in Austria
|
|
 |
|
|
| Product | LAVA® DESK 2.0 | LAVA® BASIC-DM | LAVA® STAND |
| Device / mounting depth | 15 mm | 22/52 mm | 22 mm |
| Power | 80 W | 350 W - 1,500 W | 300 W, 450 W |
| Surface temperature | max. 70 °C | max. 120 °C | max. 95 °C |
| Wall mounting |
|
|
Wall mounting set optional |
| Ceiling mounting | Mounting on underside of table |
|
- |
| Connection | Schuko plug | Fixed connection | Schuko plug |
